IMO
ACF Standard Line
| Brand | IMO |
| Type | ACF Standard Line |
| Flow | 18,6 - 174 m³/h |
| Discharge pressure | < 16 bar |
| Viscosity | 1,4 - 1500 mm²/s |
| Medium temperature | < 130°C |
Product Information
Main Applications
Main Engine LO pump, LO Transfer pump, Crosshead LO pump, HFO transfer pump.
Design

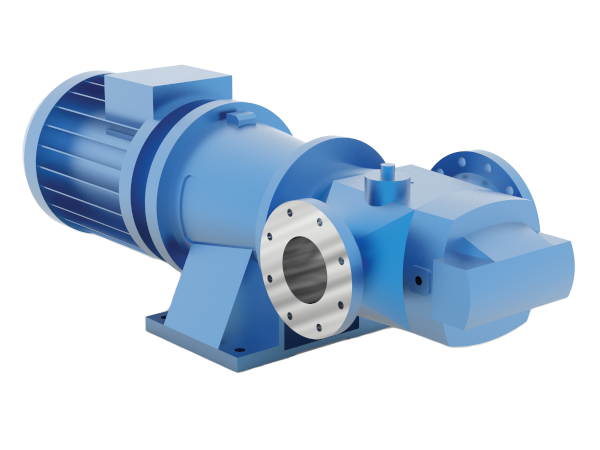

The pump is designed to be flange-mounted to its electric motor via a connecting frame and a flexible shaft coupling. By the connection frame, the pump may be mounted horizontally or vertically. For vertical installations, a stand called TRIPOD can be supplied. The design is of inline DIN type, e.g., inlet and outlet on opposite sides. The pump is equipped with an internal relief valve and tuning to avoid cavitation.
