IMO

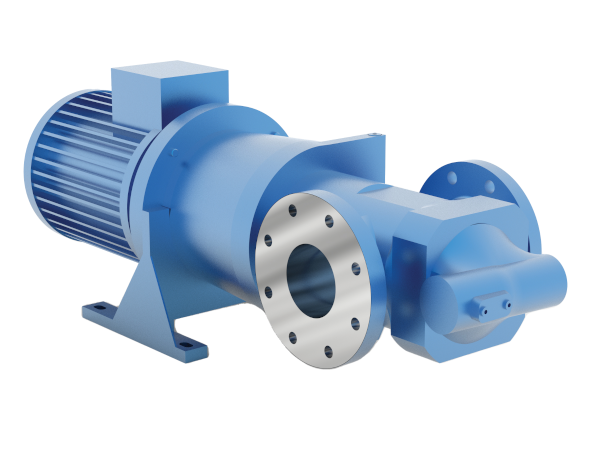

ACG OptiLine
| Brand | IMO |
| Type | ACG OptiLine |
| Flow | 4,8 - 70 m³/h |
| Discharge pressure | < 16 bar |
| Viscosity | 1,4 - 3500 mm²/s |
| Medium temperature | < 180°C |
Product Information
Main Applications
HFO/MDO feeder pump for separator, HFO transfer pump, HFO/MDO preliminary pressure pump, HFO/MDO circulation pump.
Design
The pump is designed to be flange-mounted to its electric motor by a lantern and a magnetic coupling. By the angle bracket, the pump may be mounted horizontally or vertically. The design is of in-line DIN type, e.g., inlet and outlet on opposite sides. The pump is equipped with an internal relief valve.
