L / LV
| Brand | Allweiler |
| Type | L / LV |
| Flow | < 120 m³/h |
| Delivery head | < 250 m |
| Discharge pressure | < 25 bar |
| Medium temperature | < 160°C |
| Materials | Cast iron, Nickel aluminium bronze |
Product Information
Main Applications
Ballast pump, bilge pump, boiler circulation pump, boiler water pump, cargo pump, firefighting pump, fresh water cooling pump, general service pump, heat transfer pump, hydrophore pump, lube-oil circulation pump, potable water pump, sea water cooling pump.
Design

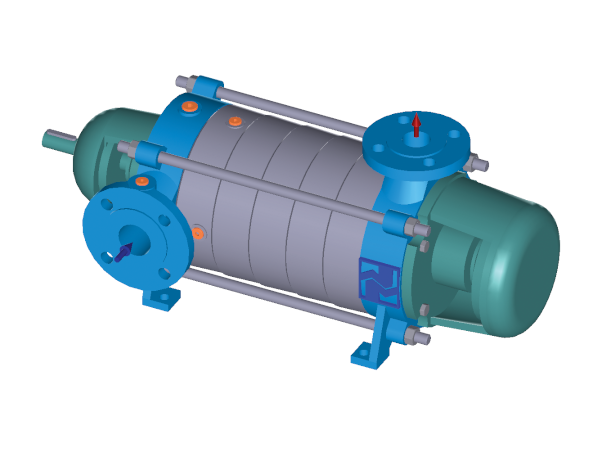

L: horizontal, two or multi-stage high-pressure centrifugal pump of the segmental-type of construction.
LV: vertical, two or multistage high-pressure centrifugal pump of the segmental-type of construction.
Replaceable impellers and diffusers as well as shaft sleeves and shaft protection sleeves. The casing parts sealed by O-rings are held together by external casing tie bolts. Axial thrust compensation by single-wheel balancing. Any residual forces are absorbed by the bearings arranged in the bearing casings and motor brackets, respectively. With series L, the pump feet are cast to the suction and delivery casing. Thus, the pipeline forces are directly passed into the base plate and foundation. Vertical and horizontal pumps of the same size have identical hydraulic capacities.
